Processing Capacity Is 1000kg/H Hammer Mill Unit
Milling Plant
The milling plant effectively reduces the size of particles in the
not-yet-finished meal after fat extraction, helping you meet
customer specifications about particle size.

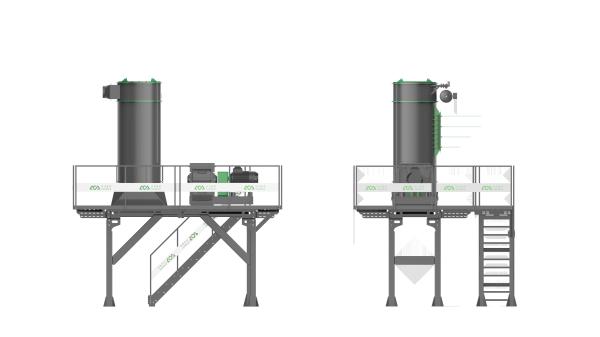

This is a complete system, featuring a conveyor under the platform
on which the hammer mill is mounted, and an extractor fan that
draws air through the system, keeping everything cool and
evacuating dust to a self-cleaning filter bag.
Crushing equipment is the general term for crushing machinery and
grinding machinery. The two are usually divided roughly according
to the size of the discharge particle size: in the discharge, the
content of the particle size greater than 3 mm accounts for more
than 50% of the total discharge volume is called crushing
machinery; the content of less than 3 mm accounts for more than 50%
of the total discharge volume Those are called grinding machines.
Sometimes the grinding machine is also called a pulverizing
machine, which is the narrow meaning of a pulverizing equipment. A
machine that uses mechanical force to crush solid materials and
turn them into small pieces, fine powder or powder. The
characteristics of crushing operations with crushing machinery are
high energy consumption, large amount of wear-resistant materials
and grinding media, severe dust and high noise.
Purpose
The application of crushing machinery can achieve the following
main purposes:
①Reducing the particle size of materials to a certain size, such as
grinding flour, crushing feed, grinding raw and clinker of
pigments, dyes and cement, and grinding slurry to prepare
suspension. And to increase the fluidity and filling of the
material and facilitate packaging, storage, transportation, etc.;
② After crushing, the material is sieved into small pieces, fine
particles or powders of different particle sizes, such as the
preparation of blocks, crushed stones for concrete and road
construction projects Stone and artificial sand, the raw coal is
crushed into medium, small pieces and coal powder according to user
needs;
③Increase the surface area of the material to improve the effect
of its physical action or the speed of chemical reaction, such as
grinding the material to be artificially dried to speed it up Its
drying speed, finely grind the catalyst and adsorbent to strengthen
the catalyst efficiency and adsorption respectively, and grind the
coal into pulverized coal to improve its combustion speed and
completeness, etc.;
④ make the different components in the material smash After the
monomer is separated to further separate them from each other, for
example, iron ore is crushed to obtain refined iron ore powder by
magnetic separation or flotation, and lead-zinc ore is crushed to
separate lead ore powder and zinc ore powder.
| model | XSXT45-01 |
| composition | Hammer Mill, platform , guardrail, dust reduction bin, cyclone (2
sets), fan |
| Processing Capacity | 1000kg/h |
| Material | Q235B &30408 |
| Motor Power | 37kw(Hammer Mill)/ 2.2kw(fan) |
| Motor Brand | Simens |
| Reducer brand | JIE |
| shaft brand | SKF |
| shipping weight | 6000kg |
